ALMM & BIS Approved Equipment
Shivam Solar

Certified High-Performance Solar Hardware

Engineered for maximum power yield in hot climates. Exclusively ALMM listed, BIS certified, and backed by comprehensive manufacturer warranties up to 30 years.

TOPCON BIFACIAL 30-Yr Warranty 580W-600W TOPCon Bifacial Dual-Glass Panel
Solar Photovoltaic Modules

580W - 600W N-Type TOPCon Dual-Glass

High-efficiency 16-busbar N-type bifacial panel delivering up to 25% additional power generation from the rear reflective side.

Peak Efficiency 22.8% Maximum
Power Degradation < 0.40% / Year
Bifaciality Factor 80% ± 5%
Certifications ALMM, IEC 61215, BIS
MONO PERC 25-Yr Warranty 550W Mono PERC Half-Cut Module
Solar Photovoltaic Modules

540W - 550W Monocrystalline Half-Cut

India's proven rooftop workhorse module. Superior anti-shading performance with 144 half-cut cells and excellent low-light sensitivity.

Peak Efficiency 21.4% Maximum
Temp Coefficient -0.34% / °C
Cell Count 144 Multi-Busbar
Wind Resistance 2400 Pa / 5400 Pa
SINGLE & THREE PHASE 10-Yr Warranty Shivam 5kW - 10kW Smart On-Grid Inverter
Solar Power Conditioning

Shivam Smart 5kW - 10kW On-Grid Inverter

Intelligent dual-MPPT transformerless inverter with integrated WiFi stick, real-time cloud monitoring, and built-in DC surge protection.

Max Efficiency 98.6% (Euro 98.1%)
MPPT Inputs Dual MPPT (2+2 Strings)
Ingress Protection IP65 Weatherproof
Monitoring Smartphone App / Web
COMMERCIAL THREE PHASE 10-Yr Warranty Commercial Solar Inverter
Solar Power Conditioning

Shivam Pro 25kW - 100kW Commercial Inverter

High-capacity three-phase string inverters designed for factories, warehouses, and institutional campuses with quad-MPPT optimization.

Max Efficiency 98.8% Peak
MPPT Trackers Up to 6 MPPT Channels
Cooling Smart Redundant Fan
Safety Type II AC & DC SPD
LIFEPO4 BATTERY 6000 Cycles LiFePO4 Solar Battery ESS
Energy Storage Systems

PowerWall 5.12 kWh - 15 kWh LiFePO4 ESS

Modular wall-mounted or rack-mounted lithium iron phosphate battery backup. Zero maintenance, 100% fire-safe, with 15+ years design life.

Nominal Voltage 51.2 V Standard
Usable Energy 5.12 kWh (Stackable to 40kWh)
Depth of Discharge 90% - 95% DoD
Battery BMS Smart CAN / RS485 Comm

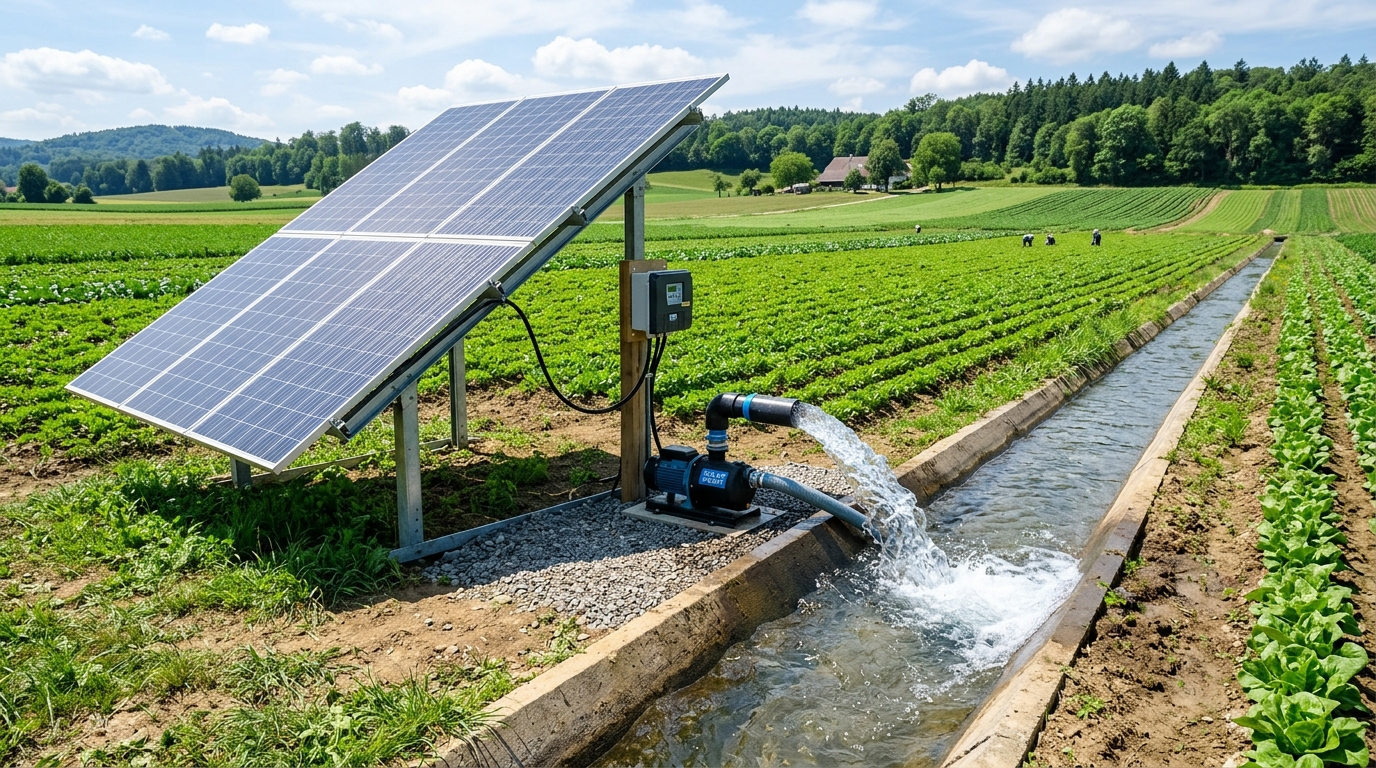

PM KUSUM APPROVED 5-Yr Warranty Solar Agriculture Submersible Pump
Agricultural Water Solutions

3HP - 10HP Solar Water Pump & VFD Drive

Stainless-steel agricultural submersible and monoblock solar pumps equipped with high efficiency variable frequency drives and dry-run protection.

Power Ratings 3 HP, 5 HP, 7.5 HP, 10 HP
Discharge Head Up to 150 Meters
Water Discharge Up to 2,50,000 Liters / Day
Drive Tech Sensorless MPPT VFD
HOT-DIP GALVANIZED 25-Yr Rust Free Solar Rooftop Mounting Structure
Mounting & Hardware

Custom Engineered Elevated Solar Structures

High-tensile hot-dip galvanized and anodized aluminum mounting frames designed to withstand 170 km/h cyclone wind speeds without roof drilling leaks.

Galvanization 80 - 100 Microns Zinc
Wind Rating Up to 170 km/h (IS 875)
Fasteners SS304 Stainless Steel
Elevations Flush, 1-Meter, High-Rise
MICROINVERTER 25-Yr Warranty Solar Microinverter Module-Level MPPT
Module-Level Power Electronics

Shivam Microinverter System (4-in-1)

Module-level maximum power point tracking eliminating string mismatch, partial shading losses, and high-voltage DC hazards on your roof.

Peak Efficiency 97.5% CEC Rated
Module Control 4 Independent MPPTs
Safety Rapid Shutdown Compliant
Warranty 25 Years Standard
Technology Comparison

N-Type TOPCon vs Mono PERC vs Polycrystalline

Understanding cell architecture helps you select the optimal panel technology for your rooftop and regional climate.

Feature / Metric N-Type TOPCon (Recommended) Mono PERC Polycrystalline (Legacy)
Module Efficiency 22.5% - 23.2% 20.8% - 21.5% 16.5% - 17.5%
Bifacial Energy Gain 10% - 25% Extra Power 5% - 10% Extra Power None (Monofacial)
High Temperature Degradation -0.30% / °C (Best for India) -0.35% / °C -0.41% / °C (High Loss)
Linear Performance Warranty 30 Years (87.4% Output) 25 Years (84.8% Output) 25 Years (80.0% Output)
LID / PID Susceptibility Zero LID (Zero Boron-Oxygen loss) Low LID Moderate LID
